Current mining activities call for strong productivity and little interruption. Grasping the inner workings of modern crushing tools proves vital for boosting returns on investment and steady operations. HiDerek Mining Machine supplies these capable systems to promote smooth teamwork and expert guidance on technical matters.

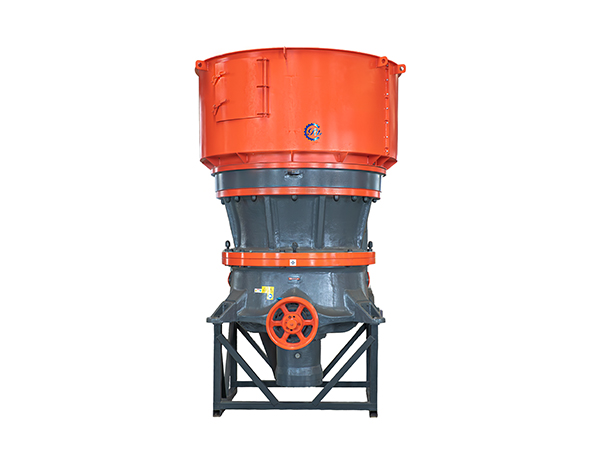

What is a Single Cylinder Hydraulic Cone Crusher?
The single cylinder hydraulic cone crusher stands as a capable device built mainly for the secondary and tertiary crushing phases. In contrast to the standard cone crusher, which usually depends on detailed mechanical spring changes, this line has a smaller space need and greater material handling volume.
Key parts of this gear consist of the upper frame, middle frame, moving cone section, lower frame, and the drive section. The main standout feature is the hydraulic cylinder section, which makes the whole change process much simpler. These devices receive careful design for flexibility, with as many as 54 different crushing chamber setups and several eccentricity options to fit particular location demands.
Standards for the technology in these units reach very solid levels. As a leading crusher company, the exact construction guarantees worldwide matching and easy access to replacement components.

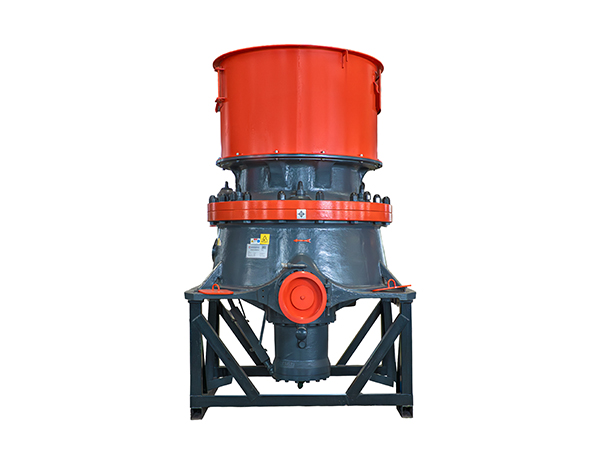

How the Cone Crusher Working Process Delivers Precision
The cone crusher working principle depends on the contact between a rotating cone and a stationary liner. A hydraulic setup powers this action and handles both changes and safeguards. Big pieces of material go into the input opening. There, the Constant Liner Performance (CLP) crushing chambers help with smooth entry and effective size reduction.
Within the unit, the drive section turns the eccentric sleeve. This action makes the moving cone swing back and forth. As a result, the material gets crushed against the fixed cone liner. Built-in PLC hydraulic setups enable instant, automatic changes to the Closed Side Setting (CSS). Such features keep the output particle size steady, no matter the kind of input material.
On top of that, the setup keeps track of and automatically adjusts for liner wear. This helps workers make the most of wear components. It also allows better planning for upkeep periods.
Comparison of Technical Specifications and Performance
To see why the single cylinder hydraulic cone crusher takes over from the standard cone crusher in various busy settings, it helps to review the exact handling volumes and energy levels for different types.
| Model | Feeding Port (mm) | Max Power (kW) | Max Capacity (t/h) |
| 42-65 | 1065 | 375 | 2870 |
| 50-65 | 1270 | 375 | 2935 |
| 54-75 | 1370 | 450 | 3485 |
| 62-75 | 1575 | 450 | 4330 |
| 60-89 | 1370 | 600 | 5805 |
| 60-110E | 1370 (54 in) | 1200 | 8890 |
Why Choose Single Cylinder Technology Over a Standard Cone Crusher
The standard cone crusher continues as a trusted basic choice in the field, though many operators are now transitioning to the single cylinder hydraulic cone crusher for enhanced efficiency. However, single cylinder hydraulic models bring clear benefits for current, information-focused mining sites.
Superior Throughput: Types like the HD Series offer a 30% rise in production versus traditional ones.
Intelligent Automation: Modern setups use an RTOS-based smart control system. It tracks oil temperature, flow rate, pressure, and vibration in real time.
Automated Safety: These units include automatic overload and tramp iron protection. They shield the gear from harm due to unbreakable items.
Reduced Downtime: Special revolving frame technology and hydraulic separation make upkeep safer and quicker. This cuts planned stoppages by as much as 70%.
Optimized Footprint: Workers can reach planned output levels with a tighter gear space than with past methods.
Vital Factors for Industrial Application and Maintenance
Picking the proper single-cylinder hydraulic cone crusher calls for a close review of the location-based details. The handling volumes noted earlier rest on factors like the material bulk density of 1.6 t/m³ and certain feed patterns.
Real output relies on the nature of the material, its water level, and the input approach at the site. For planning the facility setup, designers need to consider the Main Shaft Assembly Removal Height. This sets the lowest overhead space needed to raise and take out the main shaft for repairs. Moreover, the output bin size should align with the load of two transport trucks. That way, it supports steady material movement without holdups.
From our work in delivering complete setup packages, we have found that applying cloud-supported predictive upkeep checks can greatly lengthen the service life of precise 1:1 spare parts.
Conclusion
Moving from the standard cone crusher to the single-cylinder hydraulic cone crusher marks a step toward more intelligent and productive mining. These units blend cutting-edge automation with strong mechanical builds. As a result, they provide the solid returns on investment and steady performance needed in today’s tough market. For secondary crushing of tough rock or fine tertiary crushing for sand production, choosing a unit with constant liner performance and automatic wear adjustment holds the path to lasting achievements.
FAQ
What is the price of a HiDerek single cylinder hydraulic cone crusher?
The cost of a HiDerek single cylinder hydraulic cone crusher varies with the exact type, selected crushing chamber setup, and needed level of automation, like the ASRI intelligent setting system. Since these devices get made to order for particular mining spots to secure the best returns on investment, we offer custom price estimates. We base them on your output needs and the traits of your materials. This approach ensures the machine fits your goals perfectly. In addition, factors such as power ratings and capacity options influence the final figure. We always aim for clear pricing that matches your budget while delivering top value.
How does single-cylinder hydraulic cone crusher maintenance compare to a standard cone crusher?
Upkeep for a single-cylinder hydraulic cone crusher runs much more smoothly than for a standard cone crusher. In our HD Series, a unique revolving frame and hydraulic separation cut planned stoppages by up to 70%. The system handles linear wear on its own. It also watches oil temperature and pressure live to avoid sudden breakdowns. By contrast, the standard cone crusher often needs more hands-on checks and longer repair times. This leads to higher costs and more interruptions. With the single cylinder model, operators enjoy quicker access to key parts. As a result, daily tasks face fewer delays. Overall, these features make the hydraulic version a smarter pick for busy sites seeking reliable service.
Can I get spare parts for my single-cylinder hydraulic cone crusher locally?
Yes, a key benefit of our gear lies in its broad compatibility around the world. The precise 1:1 spare parts in our units follow international standards. This setup means you can find easy parts supply and technical help no matter where you operate. Local dealers often stock common items like liners and seals. For rarer components, our network ensures fast shipping. We also provide guides on sourcing to keep your machine running without long waits. Such support builds trust and helps maintain steady production levels.
What is the lead time for a HiDerek Mining Machine turnkey solution?
The wait time for a HiDerek Mining Machine turnkey solution changes depending on the detail level of the production line plan and the particular types needed, such as the 60-110E or 42-65 options. We stress open talks and skilled trades help to wrap up the setup and technical aid steps as fast as we can. This gets your site active quickly. Typical timelines range from several months for basic installs to longer for full custom lines. We track progress closely and adjust as needed to meet deadlines. In the end, our focus stays on delivering a complete, ready-to-run system that boosts your efficiency right away.
Is the single-cylinder hydraulic cone crusher suitable for very hard ore?
The single cylinder hydraulic cone crusher fits perfectly for working with tough and rough ores. Thanks to strong motors and CLP constant crushing chambers, these units apply excellent crushing power. The cone crusher working process covers automatic tramp iron protection. This lets the device deal with unbreakable items safely, without harm to the inside parts. For hard rock applications, the design handles high loads steadily. It also keeps output sizes uniform over long runs. Compared to older models, this one shows better wear resistance. Therefore, it serves as a reliable choice for demanding mining tasks where durability matters most.
