How Does a Gyratory Crusher Work in Mining

Introduction

A primary crushing line is only as steady as the chamber receiving its first truckloads. For teams asking how does a gyratory crusher work, the short answer is continuous compression: a moving mantle presses rock against fixed concaves while controlled feed and equipment monitoring help maintain stable operation. Selecting a gyratory crusher requires more than checking nameplate capacity. In the gyratory crusher market, buyers also need to compare installation clearances, maintenance access, and the support offered by a gyratory crusher supplier.

How the Crusher Works

How Does a Gyratory Crusher Work in the Chamber

How does a gyratory crusher work inside the chamber? Feed drops onto a moving cone, or mantle, suspended within fixed concaves. The mantle travels eccentrically, so the gap opens on one side while closing on the other. Rock is compressed where the chamber narrows and moves downward when the gap opens again. Because this action repeats around the circumference, material leaves in a continuous stream rather than in batches.

HD Series monitoring adds operating context to that mechanical cycle. Its RTOS-based control system tracks oil temperature, flow rate, pressure, load, and vibration while providing online analysis and anomaly protection. A change in those signals gives the crew an earlier reason to inspect feed conditions, operating load, or equipment status. The data supports operator judgment; it does not replace it.

Components That Affect Output

Several components set the practical output of the chamber. The moving cone, eccentric assembly, transmission system, hydraulic cylinder, and feed arrangement must work as a system. A wear-part change can alter the open-side profile, while uneven feed may underload one side and overload the other. Before comparing a gyratory crusher for sale, request a model-specific drawing and application review instead of using published capacity figures as the only selection reference.

• Feed opening and top-size distribution for the run-of-mine material.
• Discharge opening and target product size at the primary crushing stage.
• Bulk density, moisture, hardness, and work index of the material.
• Feeder width, surge-bin volume, and downstream conveyor capacity.

How to Match Capacity to the Site

A capacity figure becomes useful only when its assumptions resemble the mine duty. HD Series tables assume that 100% of the feed passes 80% of the feed-opening width, 80% passes 60% of that width, and 50% passes a screen size equal to 10% of the maximum feed size. They also use a reference bulk density of 1.6 t/m³ and maximum eccentricity. Change those conditions and the production result can change, even with the same model.

Application-led quotations are more useful than headline numbers in the gyratory crushers market. Use the table for initial screening, then attach the actual feed gradation and discharge target when requesting duty-specific confirmation.

Reference figures are not a production promise. Material characteristics, feed size and distribution, work index, moisture, and feeding method all affect capacity. Ask the gyratory crusher supplier to state the feed and discharge assumptions behind the quotation, so site data can be checked against them before approval.

How to Plan Installation and Maintenance

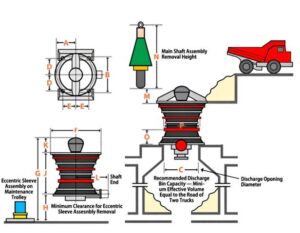

Physical fit often decides whether installation stays on schedule. The dimension drawing establishes width and side projection, while the discharge opening, total height, main shaft assembly removal height, and eccentric trolley clearances shape the civil and lifting plan. Reserve those spaces early; they are service requirements, not spare room that can be removed later.

Maintenance access belongs in the first civil layout. The main shaft assembly removal height M/N defines lifting space, while F/G/H/J/K/L describe the eccentric sleeve assembly maintenance trolley clearances and vertical access requirements. The recommended discharge bin should hold at least the effective volume of two haul trucks, providing downstream buffer capacity and reducing material-handling bottlenecks. The same layout needs a clear crane path, trolley staging area, guarding, and safe isolation points.

Why Monitoring and Supplier Fit Matter

Useful monitoring ends in a maintenance decision. The HD Series RTOS system watches variables tied to crushing conditions, while the hydraulic separation and integral lifting frame design support safer and more efficient maintenance work. HiDerek Mining Machine states that the revolving-frame design can reduce scheduled downtime by up to 70%. Before using that figure in a project case, confirm the comparison baseline, maintenance scope, and site conditions.

Compare Commercial Risk, Not Just Nameplate

A gyratory crusher for sale needs a commercial comparison that goes beyond motor rating. Put foundation loads, shipping envelope, automation, warranty scope, commissioning acceptance, spare and wear-part lead times, training, and promised delivery on one bid sheet. Within the gyratory crushers market, also require gyratory crusher distributors to identify the after-sales owner and response boundary in writing.

Request a Project Review

A useful project review starts with site data. Send the feed top size, expected capacity, bulk density, moisture, work index if known, target discharge size, haul-truck payload, available crane height, and preferred delivery window. We can map those inputs to an HD Series model, check discharge-bin and maintenance clearances, and return a quotation with stated assumptions. Contact our gyratory crusher distributors team when the project is ready for a drawing-level review.

FAQ

How does a gyratory crusher work with variable feed?

The movement of the mantle remains constant eccentric, whereas load and discharge reactions vary according to feed size, moisture content, hardness, and feed distribution. The control unit can give abnormal conditions of oil, pressure, load, and vibrations. A stable feed along with duty analysis is required.

How much maintenance clearance is required?

Maintenance clearance is model-specific. Reserve the documented main-shaft removal height, eccentric-trolley width and height, crane path, discharge-bin volume, and safe isolation space. Never scale clearance from another model; use the approved dimensional drawing for the exact crusher and liner arrangement.
